**PLEASE CALL FOR COMMERCIAL PRICING**

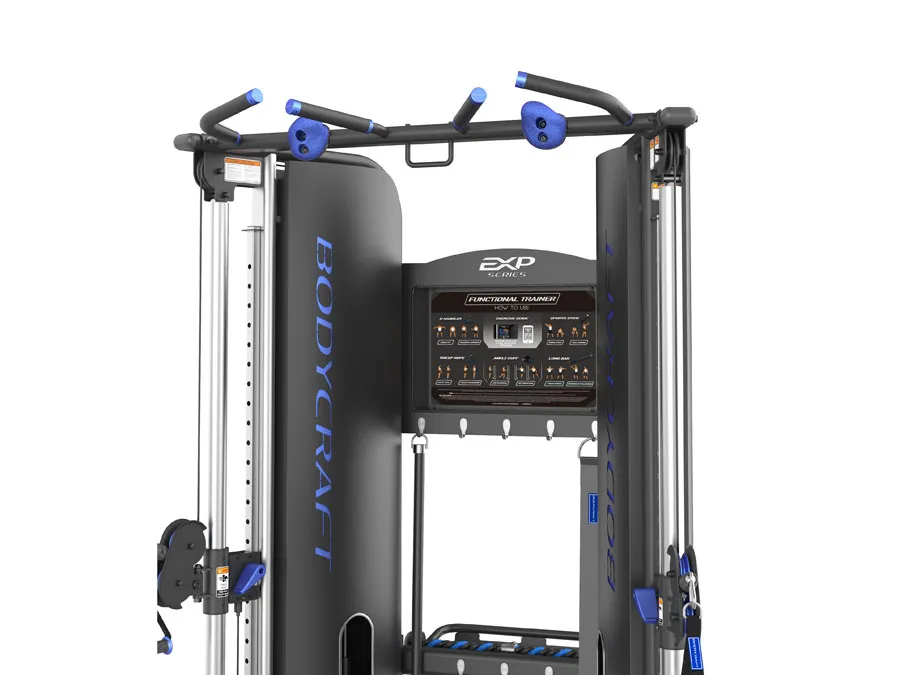

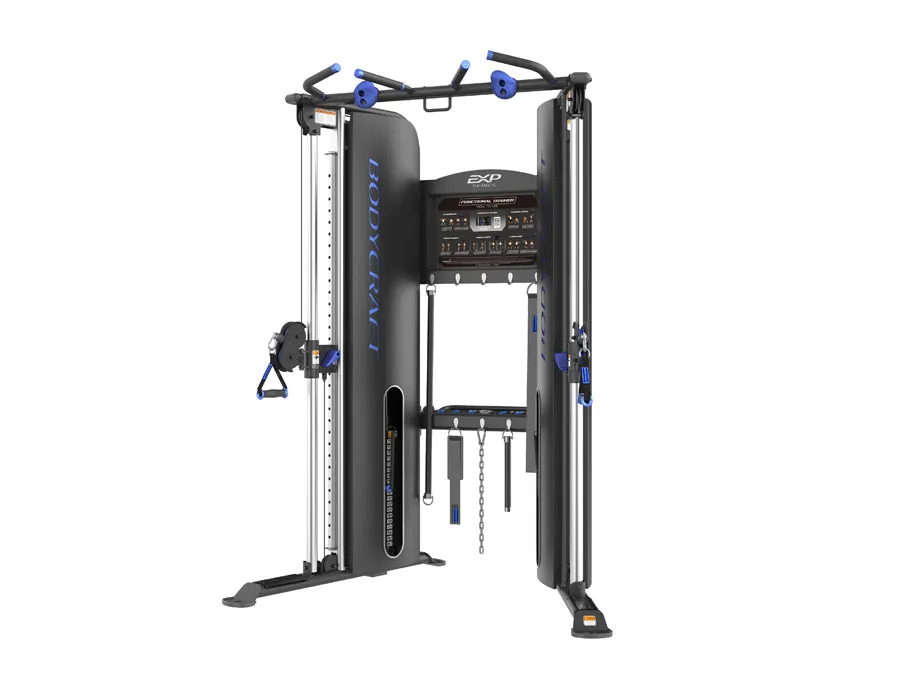

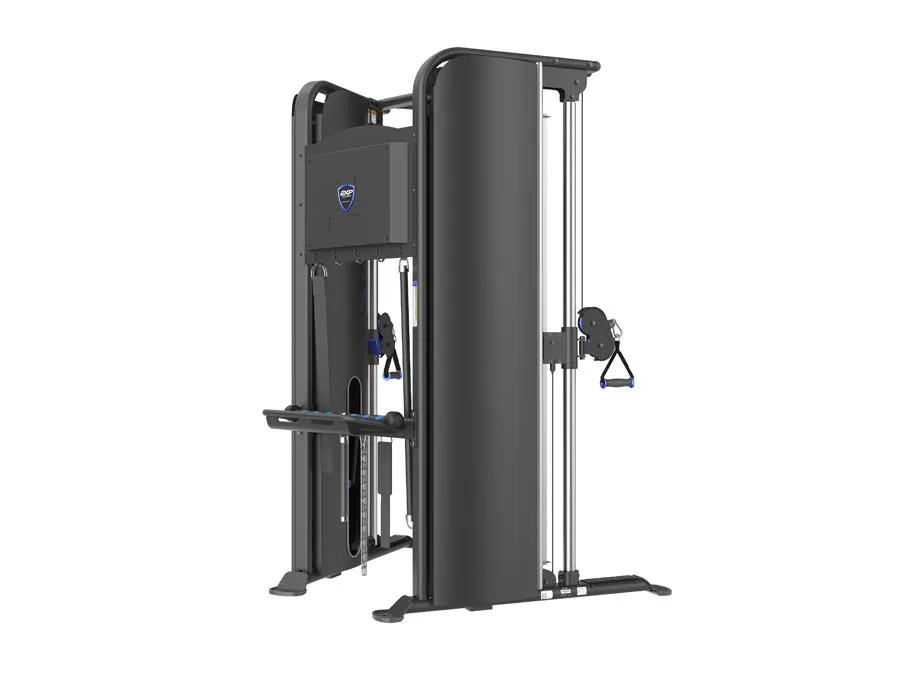

The BODYCRAFT EXP Series DFT Functional Trainer features a smart design, providing a wide range of
exercises in a compact space. It offers adjustable weight increments and a 2:1 pulley ratio for easy
intensity control and progression. From the multi-grip pull-up bar to color-coded adjustment points
and illustrated exercise placards, it ensures intuitive use for all users and trainers.

Specs

FRAME – Heavy-Gauge Oval Tubing W/ Laser Cut Steel Plates

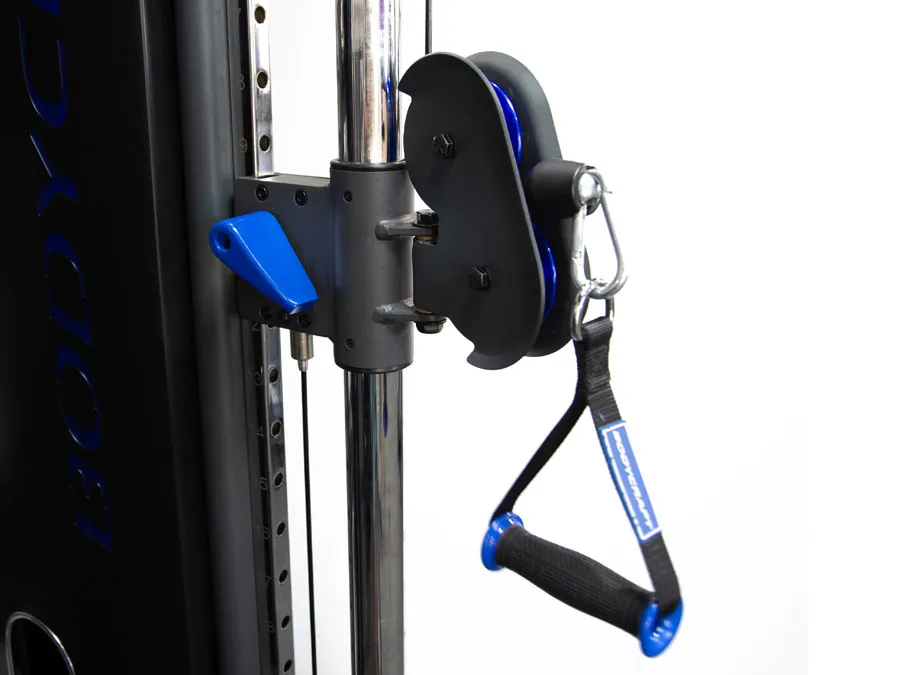

CABLE COLUMNS – Independent, Adjustable Cable Columns Pulleys w/ 32 Height Positions. Rotate 200 Degrees
PULLEY TRAVEL – 61″ Vertical Travel with 32 Height Positions
CABLE TRAVEL – 77″ (Using One Side)
STABILITY – Non Skid Extra Wide Stabilizer Rubber Feet w/Scratch Plate for Protection.
PULLEYS – 3.5″ Pulleys with Sealed Maintenance-Free Precision Ball Bearings
CABLES – Flexible PU Coated, 7 X 19 Strand Aircraft Cable Rated at Over 2000 lbs. Tensile Strength.
WEIGHT STACKS – Dual 200 LBS Weight Stacks with Magnetic Selector Pins W/ Lanyard.2:1 Ratio. Optional Upgrade to 250 LBS Each.
GUIDE RODS – Heavy Duty Solid 3/4“ Chrome Plated
DIMENSIONS – 62.5″W x 50″D x 84.5″H
WEIGHT – (Assembled) 800 LBS (900 LBS W/ Upgraded 250 LB Stacks)

Warranty

COMMERCIAL
10 Years: Structural main frames & welds.
5 Years: Parts: bearings, pulleys, bushings, guide rods, & weight plates.
1 Year: Upholstery & cables.
90 Days: Labor

RESIDENTIAL
Lifetime: Structural main frames & welds.
10 Years: Parts: bearings, pulleys, bushings, guide rods, & weight plates.
90 Days: Labor
